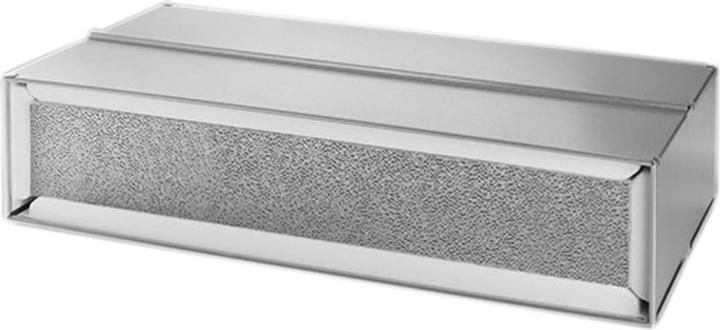

Fire-resistant penetration seals for cable penetrations in ceilings and walls in accordance with DIN 4102-9, S90, consisting of a galvanised sheet steel housing, lined with fire protection agent that foams up in the event of fire. The cable penetration seal is to be supplied as a finished construction element and mortared in.

Cable penetration seal for lightweight partition walls from 10 cm thick, solid walls made of masonry, concrete or aerated concrete from 10 cm thick, reinforced concrete ceilings, aerated concrete ceilings or concrete ceilings from 15 cm thick.

Features:

• universally applicable
• Easy installation
• Space savings of up to 80% possible
• To ensure that the cable box can be mortared in, we recommend a minimum distance of 1 cm between the cable box and the opening in the building shell.
• Modular, industrially functional prefabricated partitioning
• Effective 100 % coverability, no coatings, panelling, sleeves or bandages required
• also suitable for retrofitting: cable boxes can be opened
• Approved for cables of all types - without limiting the cable diameter
• also approved for cable bundles up to ß 10 cm, but cables do not necessarily have to be bundled
• Approved for all empty conduits in accordance with DIN EN 61386 with and without cable assignment up to a diameter of 63 mm
• Approved for waveguides up to 68 mm x 41 mm and coaxial waveguides up to 60 mm
• approved for loose tube systems up to 50 mm diameter and loose tube cables up to 24 mm diameter

Scope of delivery:
1 cable box
1 foam plug
1 quality label
1 piece of assembly instructions

• ----------------------------

Selection criteria:
Outer dimensions H x W: 60 x 200 mm
Internal dimensions H x W: 30 x 170 mm

• ----------------------------

Approval: Z-19.15-202
Fire resistance class: S90 or S120 according to DIN 4102-9
FTZ specification: 736 53 FS 1/07.88
Installation depth: 270 mm

Item no.: WBSWD90-00060200
Shop number: 123510.
