Best Telegärtner products in the Cable ties category
On this page you'll find a ranking of the best Telegärtner products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

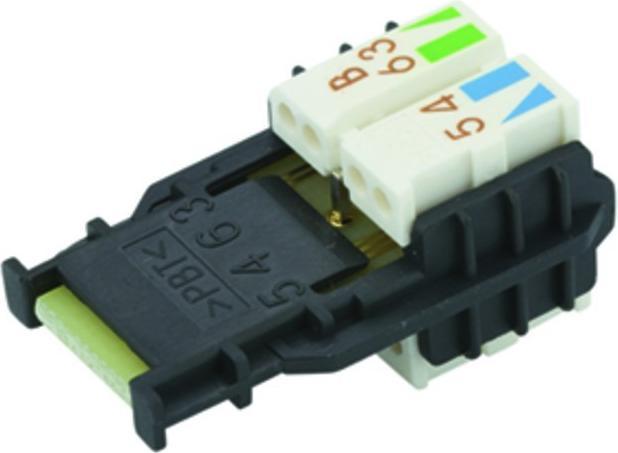

1. Telegärtner MFP8 Wire Manager T568B
The field-terminable RJ45 connectors of the MPF8 series from Telegärtner can be directly mounted onto the installation cable to connect devices with RJ45 interfaces to the network. No outlet box or patch cable is required. The MPF8 series is the optimal solution for shielded Modular Plug Terminated Links (MPTL), End-to-End Links (E2E Links), and Direct Attach Cabling (DAC). The connectors can be re-terminated up to four times. Additionally, the wire manager can be purchased as a spare part, allowing for changes and re-terminations to be carried out particularly economically.
Features:
- Suitable for 10 Gigabit Ethernet 10GBASE-T according to IEEE 802.3
- Suitable for Four Pair Power over Ethernet 4PPoE according to IEEE 802.3bt
- Four-chamber wire manager with T568B color coding
- For shielded cabling
- Can be terminated in 60 seconds without special tools
- Optimized for on-site installation
- IPC penetration contacts suitable for solid and stranded conductors
- SAP article designation CU-Acc wiremgr MFP8 C16A D1-1.6 T568B
Notes: AWG24/1-AWG22/1, AWG27/7-AWG22/7
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke development: Not relevant
Acid development: Not relevant
Design: Blister packaging (30 pcs.)
Short designation: MFP8 wire manager T568B.

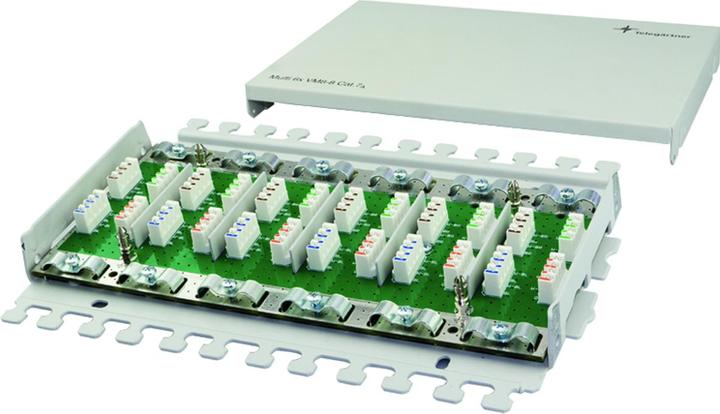

2. Telegärtner Connection Box Port CAT 7
The Connection Box is used as a connection or extension for standard shielded or unshielded twisted pair installation cables (CAT 5e, CAT 6, CAT 7) in cases of cable damage, cable extensions, and cable rerouting. This means that the cable segments of a structured cabling system do not need to be re-laid. As a result, the effort and costs associated with changes are minimized. It can connect 6 incoming and 6 outgoing 8-wire cables without significantly affecting the transmission characteristics or limiting the maximum link lengths. Installation is carried out using an LSA punch-down tool.
Cable ties
−10%
EUR99,45 was EUR110,50 EUR99,45/1pcs.
Telegärtner Connection Box Port CAT 7
Plastic cable ties, 24 mm, 1 pcs.

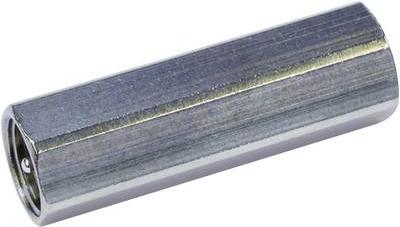

3. Telegärtner FME coupling Sti-Sti with PP insulation
The Telegärtner FME Coupling Sti-Sti is a high-quality connection element specifically designed for use in telecommunications and data transmission. This coupling is characterized by its robust construction and the use of PP insulation, which ensures reliable performance in various applications. With a return loss of typically -30 dB at 1 GHz and -21 dB at 3 GHz, it offers excellent signal quality and minimizes interference. The coupling is made of nickel, providing high corrosion resistance, which enhances its durability and reliability in demanding environments. It is offered in practical sales units of five pieces, making it an ideal choice for projects that require multiple connections.
- Made from corrosion-resistant nickel
- Return loss of typically -30 dB at 1 GHz and -21 dB at 3 GHz
- Practical sales unit with 5 pieces.
Cable ties
EUR41,38 EUR8,28/1pcs.
Telegärtner FME coupling Sti-Sti with PP insulation
Plastic cable ties, 5 pcs.
4. Telegärtner J00026A2002 Cable tie

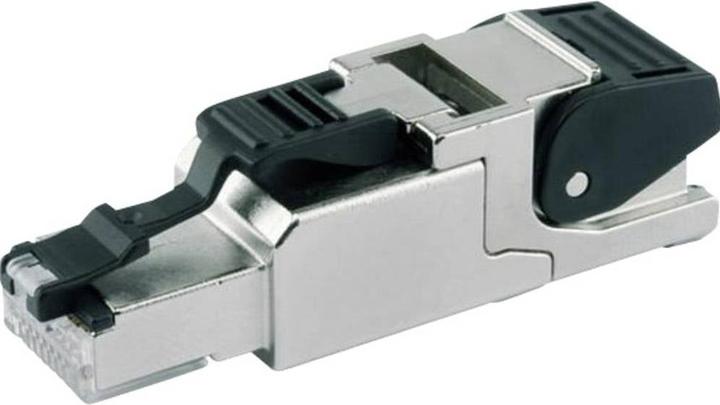

The field-terminable RJ45 connectors of the MPF8 series from Telegärtner can be directly mounted onto the installation cable to connect devices with RJ45 interfaces to the network. No outlet box or patch cable is required. The MFP8 series is the optimal solution for shielded Modular Plug Terminated Link (MPTL), End-to-End Links (E2E Links), and Direct Attach Cabling (DAC). With the field-terminable RJ45 connector MFP8 from Telegärtner, devices with RJ45 interfaces can be connected to the installation cable easily, quickly, and securely. When the device is mounted above the cable outlet or the cable is routed into the device's protective housing, the connection is invisible and inaccessible to unauthorized persons, which not only looks good but also provides the user with a crucial advantage in terms of tamper resistance.
Features: Connector according to IEC 60603-7 RJ45 8P8C, suitable for Four Pair Power over Ethernet 4PPoE according to IEEE 802.3bt, four-chamber conductor manager with PROFINET color coding, for shielded cabling, multiport capable, field-terminable in 60 seconds without special tools, optimized for on-site assembly, IPC penetration contacts suitable for solid and stranded conductors, protection class IP20, suitable for cable outer diameters of 5.0 to 9.0 mm, three-stage locking strain relief, with pre-assembled protective cap, UL listed, SAP item designation CU-CN MFP8 PNO D1-1.6.
Notes: AWG 24/1-22/1, AWG 27/7-22/7, with pre-assembled protective cap. Fire protection class: Not relevant. Burning drip: Not relevant. Smoke development: Not relevant. Acid development: Not relevant. Short designation: MFP8 PROFINET.
Cable ties
EUR26,98 EUR26,98/1pcs.
Telegärtner J00026A2002 Cable tie
Plastic cable ties, 49 mm, 1 pcs.

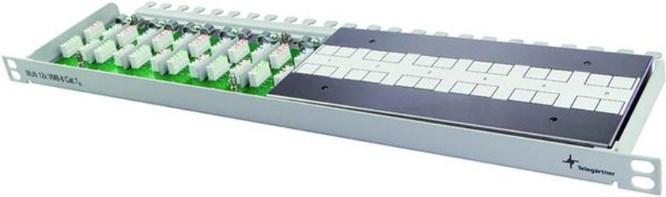

5. Telegärtner 48.30cm (19") connection module,Cat.7 raw cable, 12-way, 1/2 U
Telegärtner 48.30 cm (19") connection module, Cat.7 raw cable, 12-way, 1/2 RU - 1 piece (J00060A0072).
This connection module is designed for the extension of cables up to Cat.7. It features 12 connection modules on one board housed in a 48.30 cm (19") enclosure (1/2 U). The housing is made of sheet steel in RAL 7035 light gray and is alternatively suitable for wall mounting. Cable entry and exit are from the rear. It is EMC-safe according to EN 61000-6-1 and 61000-6-2, and is suitable for frequencies up to 1000 MHz.
Cable ties
−12%
EUR169,15 was EUR191,27 EUR169,15/1pcs.
Telegärtner 48.30cm (19") connection module,Cat.7 raw cable, 12-way, 1/2 U
Plastic cable ties, 483 mm, 1 pcs.
