Torque wrenches
−12%
only 1 piece on sale
EUR192,18 was EUR217,95
Gedore Torque screwdriver
1/4", 10 - 50 Nm
Best selling Torque wrenches from Gedore
This page always stays fresh and updates automatically.
1. Gedore Torque screwdriver
Torqueleader torque screwdriver, 0-50 / TT 50 FH
Measuring and monitoring torque screwdriver for controlled clockwise and anti-clockwise fastening, with dual scale (cN-m and ozf-in/lbf-in), featuring a 1/4" hex socket drive for use with 1/4" bits sized to DIN 3126 C 6.3. The display is accurate to ± 6% tolerance of the displayed value, in accordance with DIN EN ISO 6789:2003 Class 1D, based on national standards, with a friction pointer function in both fastening directions to lock the maximum values/maximum value display. It is lightweight due to anodised aluminium handles and is EPA-compliant (EPA = Electrostatic Protected Area), suitable for use in electrostatically sensitive applications. Delivered with a factory test certificate to DIN EN ISO 6789, operating manual, and models 250 and 500 include an additional T handle for easier working.
2. Gedore Torque wrench TORCOFIX TF-K 20-850 N-m 15-630 lbf-ft
Application:
Controlled screw tightening in the range of 20 - 100 Nm / 15 - 75 lbf·ft.
Adjustable, releasing, and robust pipe torque wrench with integrated ratchet and square drive for industry and crafts.
Design:
Classified according to DIN EN ISO 6789-2:2017 Type II Class A, calibrated to a maximum permissible deviation of +/- 3%, thus more precise than the +/- 4% required by the standard.
Includes a traceable test certificate (DIN EN ISO 6789-2:2017).
For controlled right and left tightening (square can be switched for direction change).
1/2" mushroom head interchangeable square with ball locking.
Robust, matte powder-coated steel tube construction, with galvanized ratchet and high-quality plastic parts.
New ergonomic handle, shaped according to the natural grip position of the hand.
Clearly recognizable and tactile hand centering aid as well as calibration aid in the center of the handle.
Dual scale Nm / lbf·ft with vernier (Nm), enlarged viewing window protects against abrasion and contamination.
With vernier scale for Nm main scale for setting scale intermediate values; lbf·ft setting only via main scale.
Vertical alignment of the scale, making torque setting suitable for both left- and right-handed users.
Scale mark positioned directly above the scale, preventing reading errors (parallax error).
Unit labeling integrated into the scale frame and also protected against abrasion through the viewing window.
Precise release mechanism produces a clearly noticeable and audible release signal upon reaching the set torque value.
Includes a roll-away prevention feature, preventing the tool from rolling away when set down.
Torque wrenches
−8%
EUR161,46 was EUR175,53
Gedore Torque wrench TORCOFIX TF-K 20-850 N-m 15-630 lbf-ft
1/2", 20 - 100 Nm
3. Gedore Torque spanner TORCOFLEX UK 1 200 N-m
Calibrated to a permissible deviation of +/- 3 % and better. For controlled right-hand tighteningTechnical data: Output: 1/2" (12.5 mm) - Triggering accuracy ±: 3 % - DIN standard: DIN EN ISO 6789 - Torque (max.): 100 Nm - Torque (min.): 20 Nm - Weight: 138 kg - Product type: Torque spanner - Product dimension, width: 44 mm - Product dimension, height: 44 mm - Product dimension, length: 409 mm - Graduation: 5 ° - Other technical data: Distance housing - square centre: 21.25 mmDrive type/drive: lever-action ratchetDrive square: 12.5 mmNo. of teeth: 48Tightening direction: rightTrigger mechanism: Short-stroke releaseCalibration length: 318.2 mmHead width: 42.5 mmHead height: 22 mmMaterial: Tubular steel construction with high-quality plastic partsReturn angle: 7.5 °Safety device for square drive: Ball safety deviceScale type: Mono.
4. Gedore Torque wrench DREMOMETER EL A+S 1" 750-2000Nm
Product Description
Technical Advantage/Function:
The locking and securing (A+S) prevent accidental or manipulated adjustments, providing greater process safety for the user.
Classified according to DIN EN ISO 6789-2:2017 Type II Class A, including a traceable test certificate, calibrated to a maximum permissible deviation of +/- 3%, thus more precise than the +/- 4% required by the standard.
Lightweight yet robust (as the housing is made from a single piece of aluminum) and resistant, very workshop-friendly.
No value shifts or influence on accuracy from two-handed operation or activation outside the handle (as with conventional torque wrenches).
Both the drive square and the pivot point are aligned on the same axis, ensuring high application safety, extendable to reduce the user's workload.
Extremely low wear due to force reduction from the lever mechanism.
Forged lever chain from the company's own quality forge.
Highest precision even with heavy continuous use.
Long service life and high uptime.
Easy operation - quick and secure torque application.
Single and double square for controlled right- or left-hand tightening.
Application:
Controlled screw tightening in the range of 6 - 3000 N·m.
Used in almost all industrial manufacturing sectors.
Design:
With certificate according to DIN EN ISO 6789, traceable through the company's own DAkkS laboratory to the national standard.
Automatic short-term release with a tactile and audible signal.
Dual scale with corresponding scale division.
Type B, BC, C with push-button release.
Scope of Delivery
Extension tube No. 8564-92 + 8572-74.
5. Gedore Torque multiplier DVV-13Z DREMOPLUS 1300 Nm 3/4 ″ aluminium
Mechanical, hand-operated torque multiplier with a curved reaction arm (Z-shape) for controlled tightening and loosening of screw connections. It features a single-stage planetary gear and a housing made of high-performance aluminum. The curved reaction arm is made of forged chrome-vanadium steel and can optionally be upgraded with a straight reaction arm (L-shape) with an adjustable reaction square made of lightweight metal. The gear ratio is 1:5 effective and must be used in conjunction with a torque wrench. The output square drive has a hole for screw inserts with a securing pin and ring, with an accuracy of better than ± 3% tolerance.
Additional technical features include:
- Maximum output torque: 950 lbf.ft
- Gear ratio: 1:5
- Material: Aluminum
- Certification requirement: Yes
Delivered in a robust transport case with foam insert, including a certificate of calibration and an adjustment table.
Torque wrenches
EUR1196,67
Gedore Torque multiplier DVV-13Z DREMOPLUS 1300 Nm 3/4 ″ aluminium
1/2", 270 - 1300 Nm
6. Gedore Torque tester 9 - 320 Nm
The electronic testing device DREMOTEST E 9-320 Nm from Gedore is a highly precise tool for checking and adjusting right-hand torque wrenches and screwdrivers. With a measurement accuracy of ± 1% and a tolerance of ± 1 digit, it meets the highest industrial standards. The device is ideal for intermediate testing in production lines and allows for easy, quick, and error-free verification of torque tools. It features peak value detection and can switch between units of N·m and lbf·ft. The RS 232 serial interface enables data transfer for plausibility checks, further optimizing its use in professional environments. The DREMOTEST E is equipped with a power supply and comes with a test certificate, underscoring the quality and reliability of the device.
- Measurement accuracy of ± 1% for all readings
- Integrated torsion sensor (strain gauge) for precise measurements
- Peak value detection (first peak/break point detection) for improved accuracy
- Simple operation through a single operating mode with break point detection and auto-reset
- RS 232 serial interface for data transfer and plausibility checks.
7. Gedore DVV-40Z Torque Multiplier DREMOPLUS ALU 4000 Nm
Especially suitable for:
- Machine and plant engineering
- Cable cars, elevators, and masts
- Heavy industry and construction sites
- Bridge construction
- Ship, aircraft, and railway construction
- Refineries and plastics industry
- Power plants of all kinds
Design:
Mechanical, hand-operated torque multiplier for controlled tightening and loosening of screw connections. It features a two-stage planetary gear and a housing made of high-performance aluminum. The models have a gear ratio of 1:16. Model No. DVV-40ZRS includes a stop (RS) and a non-destructive overload protection "Slipper" to protect the gearbox, suitable for both right and left-handed users. It comes with a model-specific, bent reaction arm in Z-shape made of chrome-vanadium steel. The guaranteed accuracy is better than +/- 3% tolerance. It is to be used in conjunction with a torque wrench. There are 2 models with a maximum load in the range of 4000 Nm. The square drive has a hole for inserts from cordless screwdrivers with a locking pin and ring.
Torque wrenches
−5%
EUR2379,25 was EUR2509,29
Gedore DVV-40Z Torque Multiplier DREMOPLUS ALU 4000 Nm
1/2"

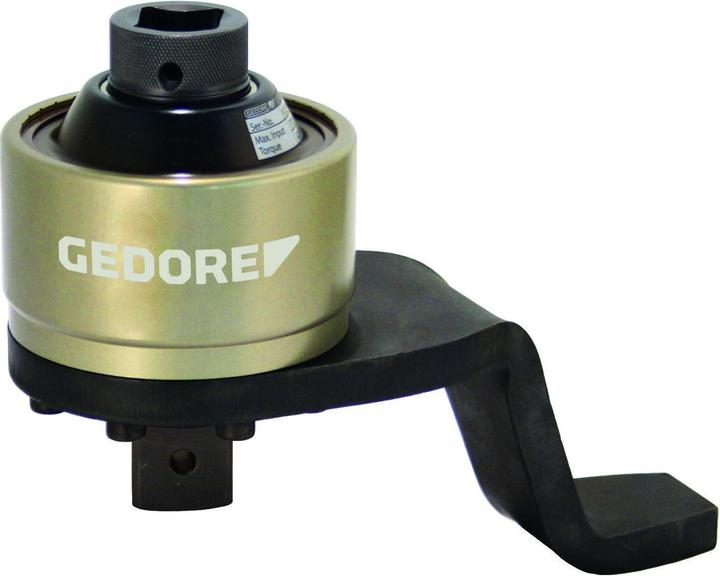

8. Gedore Torque Multiplier DVI-20Z 2000 Nm 1 ″ Aluminium
Mechanical, hand-operated torque multiplier for controlled screw tightening and for loosening screwed connections - with single-stage planetary gear - housing made of high-performance aluminium - accuracy: better than +/- 3 % tolerance - to be operated with a torque spanner - output square with hole for power screw inserts with locking pin and ring with cranked reaction arm Z-shape made of chrome vanadium steel Further technical features: - max. output lbf.ft: 1500lbf.ft - transmission ratio: 1:4 - max. input lbf.ft: 430lbf.ft - material: aluminium - subject to inspection: yes
Supplied in sturdy carrying case with foam insert, incl. works test certificate and adjustment table
zero.
9. Gedore Bent Torque Wrench Captive Pin 011100
Controlled screw tightening in the range of 0.4 - 2 Nm. Suitable for series or assembly line production. Designed for extreme continuous use. Direct attachment of the insert in the wrench through CP internal drive reduces the overall length. For both right and left tightening (the wrench only needs to be rotated 180°). Bending of the handle up to 20° upon reaching the torque value makes over-tightening unlikely. Lightweight yet sturdy and corrosion-resistant construction.
10. Gedore Torqueleader torque wrench TSC 5
Use: Controlled screw tightening in the most common range of 1 - 10 N·m. Ideal for assembly work where controlled tightening with low torque values is required, such as in the electronic hardware sector and precision mechanics.
Features:
- Adjustable torque wrench with scale
- 1/4" square drive with ball locking device
- Integrated ratchet function for controlled clockwise tightening
- Working accuracy: +/- 6% tolerance of set torque
- According to DIN EN ISO 6789, traceable to national standards
- Precision mechanism slips noticeably and audibly ("click") when the pre-set value is achieved, preventing over-tightening
- Micrometre scale graduation: 0.05 N·m or 0.1 N·m
- Two models in the range of 1 - 10 N·m
- Lightweight, yet robust and corrosion-resistant construction
- Very convenient non-slip rubber handgrip
- EPA-conformant (Electrostatic Protected Area), suitable for use in sensitive electrostatic applications
Scope of delivery:
- Torque wrench Typ TSC SLIPPER
- Test certificate according to DIN EN ISO 6789
- Delivery in sturdy cardboard packaging.
