Best selling Electronics modules from SparkFun
On this page you’ll find a ranking of the best Electronics modules from SparkFun. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. SparkFun QwiicBus - EndPoint
The SparkFun QwiicBus EndPoint is an innovative electronics module designed to significantly extend the range of I2C communication buses. Utilizing the PCA9615 IC from NXP, this breakout module converts standard I2C signals into four differential signals, enabling reliable transmission over distances of up to 100 feet. Communication occurs via an Ethernet cable connected through the integrated RJ-45 ports. This not only ensures high signal integrity but also allows for easy integration into existing systems, as all communication is conducted via the I2C protocol. The Qwiic system facilitates effortless connections without soldering, while the 0.1-inch spaced pins also support use with a breadboard. This user-friendly solution is ideal for projects requiring reliable and expandable I2C communication.
- Converts standard I2C signals into differential signals for improved range and signal quality
- Enables transmission over distances of up to 100 feet
- Easy integration into existing systems without soldering thanks to the Qwiic system
- Additional 0.1-inch spaced pins for flexible connection options.

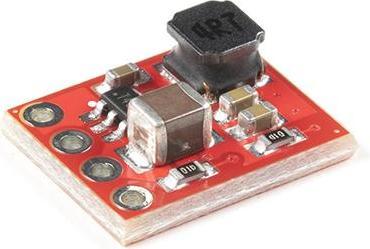

2. SparkFun BabyBuck Regulator Breakout, 3,3V, AP63203
The SparkFun BabyBuck Regulator Breakout, 3.3V, AP63203, is a highly advanced electronics module designed as a compact synchronous buck converter. With a maximum output power of 2A and a fixed output voltage of 3.3V, this module is ideal for applications that require a reliable power supply. It supports input voltages ranging from 3.8V to 32V and integrates both a high-side and a low-side power MOSFET in a compact TSOT26 package. The board measures just 0.4 x 0.5 inches, making it particularly space-saving. The use of through-hole connections for input and output voltages facilitates easy connection to other components. Additionally, the integrated Frequency Spread Spectrum (FSS) technology significantly reduces electromagnetic interference, while specialized gate driver designs minimize ringing at the switching node. Protection features such as over-voltage protection and thermal shutdown ensure safe operation of the module.
- Compact design with minimal space requirements
- Maximum continuous output current of 2A
- Integrated Frequency Spread Spectrum (FSS) technology to reduce EMI
- Proprietary gate driver design to suppress switching noise
- Integrated protection features such as over-voltage protection and thermal shutdown.
3. SparkFun Qwiic - Wägezellenmodul, NAU7802
The SparkFun Qwiic Load Cell Module NAU7802 is a compact and user-friendly breakout board specifically designed for precise weight measurement. With this module, load cells can be easily read to accurately determine the weight of objects. The NAU7802, an integrated analog-to-digital converter (ADC) with built-in amplification, enables the conversion of small electrical signals generated by load cells into readable data for microcontrollers. The connection is made via the Qwiic system, allowing for easy, solder-free integration into existing systems. The board is equipped with four spring terminals that facilitate straightforward connections to load cells. This module is ideal for applications such as industrial scales, process control, or presence detection.
- Integrated NAU7802 ADC with amplification and I2C output
- Solder-free connection via the Qwiic system
- Easy integration with spring terminals for load cells
- Ideal for precise weight measurements in various applications.
4. SparkFun Pegelübersetzer Breakout - PCA9306
There are some boards that every engineer and maker should have on their desk, and this PCA9306 dual bidirectional voltage level translator breakout is one of them! Since different components sometimes use different voltage levels to communicate, voltage level translators can be key to ensuring that various components work together.
The PCA9306 is a dual bidirectional I2C bus and SMBus voltage level translator that operates on the low side from 1.2V to 3.3V and on the high side from 1.8V to 5.5V. Simply apply your low and high side reference voltages to VREF1 and VREF2 respectively, connect your I/O, and drive the enable pin high to enable bidirectional voltage translation without the need for a direction pin!
We have updated this classic board to use a new footprint, added a second ground pin, and broken out the enable pin.
5. SparkFun Qwiic - Mux Breakout, 8 Kanäle (TCA9548A)
The SparkFun Qwiic Mux Breakout is a versatile electronics module specifically designed to facilitate communication with multiple I2C devices that share the same address. This module is particularly useful when you want to integrate a variety of sensors or devices into a single I2C bus. With the ability to control up to 64 I2C buses over a single connection, the Qwiic Mux offers a flexible solution for complex projects. Configuration is straightforward via I2C, making it easy to integrate into existing systems. Additionally, the module allows for customization of the last three bits of the address byte, enabling multiple Qwiic Mux Breakouts to be connected to the same I2C port. With a wide operating voltage range and high operating temperature, this module is suitable for a variety of applications.
- Operating voltage range of 1.65V to 5.5V for versatile applications
- Operating temperature range of -40 to 85 °C
- Standard I2C address of 0x70, expandable up to 0x77
- Ten Qwiic connectors for easy integration
- Two pass-through ports for daisy-chaining devices.

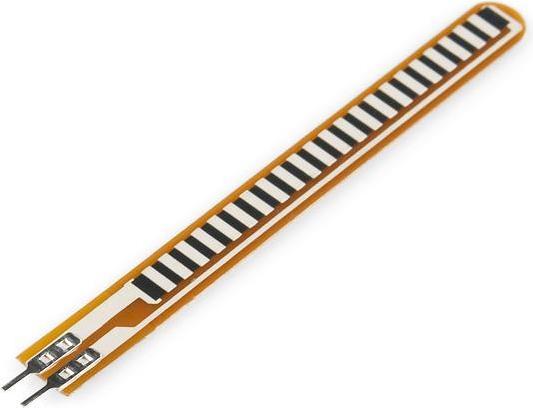

6. SparkFun Flex Sensor 2.2 / 5,6cm
A simple flex sensor with a length of 2.2 / approximately 5.6 cm. When the sensor is bent, the resistance across the sensor increases. Patented technology from Spectra Symbol - they claim that these sensors were used in the original Nintendo Power Glove.
The resistance of the flex sensor changes when the metal pads are on the outside of the bend.
The connection is spaced at 0.1 inches and is breadboard-friendly. Please check the datasheet for complete specifications.
Note: Please avoid bending or stressing this sensor at the base. The usable range of the sensor can be bent easily, but care should be taken to minimize bending outside of the usable range. The best results are achieved when the base and the lower part are firmly mounted, allowing only the actual flex sensor to be bent.
