Best Enda products in the Thermostats category
On this page you'll find a ranking of the best Enda products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Enda EUC9526 UNIVERSAL CONTROLLER
Enda EUC9526 universal controller. Features: 3.5", 5-digit graphical TFT display. Two sensor inputs can be used for TC, RTD, NTC, R, mA, V or mV. Selectable analogue, SSR or relay control output. Input-dependent signal switching as output (mA or V). 50 ms sampling time. PID control. PID self-tuning (Selftune). PID automatic setting (Auto tune). Offset setting for input variable. 32 point linearization can be configured for analog inputs. Soft start (time specification for setpoint). 24 VDC for sensor supply. Periodic switching behavior of the relay can be set in case of sensor breakage. Security levels for the menu and configuration pages. Programming via keys or RS485 Modbus interface. This text is machine translated. Specifications: Manufacturer part #: EUC9526-230 - Mounting type: Recess-mount - No. of relay outputs: 3 - Operating voltage: 230 V AC - Outputs (thermostats): 2 A relay, SSR - Product size (height): 96 mm - Product size (width): 96 mm - Product type: Universal controller - Recess depth: 81 mm - Sensor type: B, E, J, K, L, N, R, S, T, U, Pt100, NTC - Thermostat type: PID - Type (manufacturer type): EUC9526-230.
2. Enda EPC9513 PID universal controller with ramp function
The Enda EPC9513 PID Universal Controller is a highly advanced device designed for precise control of temperature and process variables in industrial automation. With its compact dimensions of 96 mm x 96 mm, this controller is ideal for integration into various control systems. The EPC9513 supports a wide range of temperature sensors, including types B, E, J, K, L, N, R, S, T, U, as well as Pt100 and NTC, making it a flexible solution for diverse applications. The integrated ramp function allows for smooth adjustments of process parameters, avoiding sudden changes and enhancing system stability. The controller is designed for mains operation and offers reliable performance in industrial environments. With a 2 A relay and the capability to control SSR (Solid State Relays), the EPC9513 is a robust choice for demanding automation projects.
- Supports a variety of temperature sensors, including Pt100 and NTC
- Integrated ramp function for smooth adjustments of process parameters
- Reliable performance in mains operation for industrial applications
- Compatible with relays and Solid State Relays (SSR) for flexible control options.
3. Enda Temperature controller PID
Simultaneous display of actual value (red or yellow 7-segment display) and setpoint (yellow 7-segment display). Soft start function (ramp function) and security code against unauthorized adjustment of the values can be set. Simple and intuitive operation through horizontal and vertical menu navigation.
4. Enda Temperature controller ET1412
Digital adjustable ON-OFF temperature controller for heating or cooling applications. Simple parameter settings (setpoint, offset, etc.) via front buttons. The actual value is displayed on a 4-digit 7-segment display with a sign (< 0 °C). The resolution can be set to 0.1 °C or 1 °C, with an accuracy of 1% of the full scale.

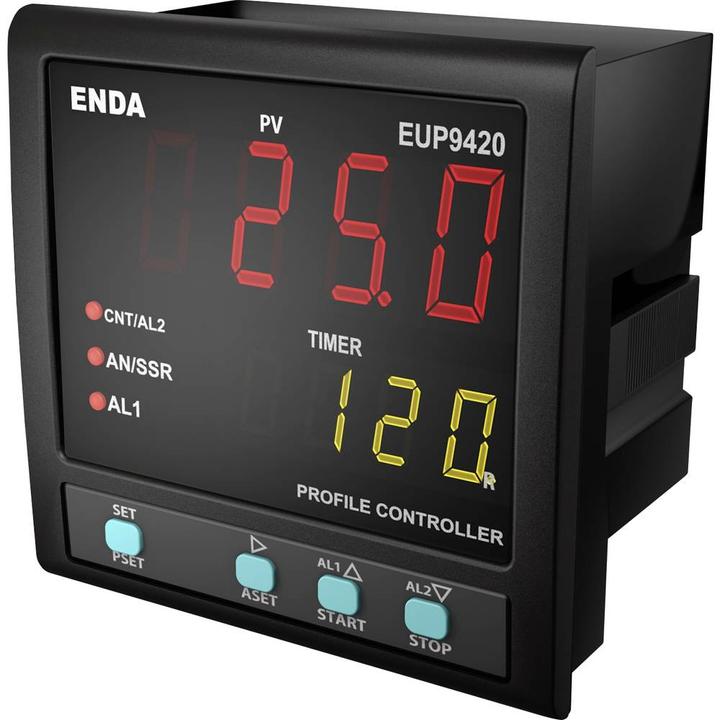

5. Enda EUP9420-230 PID universal controller Pt100, J, K, L, T, S, R SSR, relay 8A (W x H) 96mm x 96mm
Universal 3-point PID controller, 96x96mm. Features include the ability to set two target values. The analogue output can be configured for 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, or 0-50mV. It has a measuring input for thermocouples, PT100, J, K, L, T, S, R, mA, mV, and V. The automatic calculation of PID parameters (Selftune) is included. It can function as three-point control or engine valve control. Three different functions can be assigned to the digital input and the F key. A soft start feature allows for time specification for setpoint. The control output is selectable as relay, analogue, or SSR output. The analogue output can be set as 0-20mA, 4-20mA, or as SSR output. A ramp function is available with up to 16 steps. The A1 relay output can be set as an alarm or PID relay output for cooling function, while the C/A2 relay output can be set as an alarm or control output for heating function. There is an offset setting for the input variable, and the heating or cooling function can be configured. Periodic switching behavior of the relay can be set in case of sensor breakage. Programming can be done via buttons or through Modbus protocol.
Specifications:
- Manufacturer part #: EUP9420-230
- Mounting type: Recess-mount
- Number of digital inputs: 1
- Number of relay outputs: 2
- Operating voltage: 230 V AC
- Outputs (thermostats): SSR, 8 A relay
- Product size (height): 96 mm
- Product size (width): 96 mm
- Product type: Universal controller
- Recess depth: 87 mm
- Sensor type: PT100, J, K, L, T, S, R
- Thermostat type: PID
- Type (manufacturer type): EUP9420-230.
Thermostats
−10%
EUR179,99 was EUR198,89
Enda EUP9420-230 PID universal controller Pt100, J, K, L, T, S, R SSR, relay 8A (W x H) 96mm x 96mm

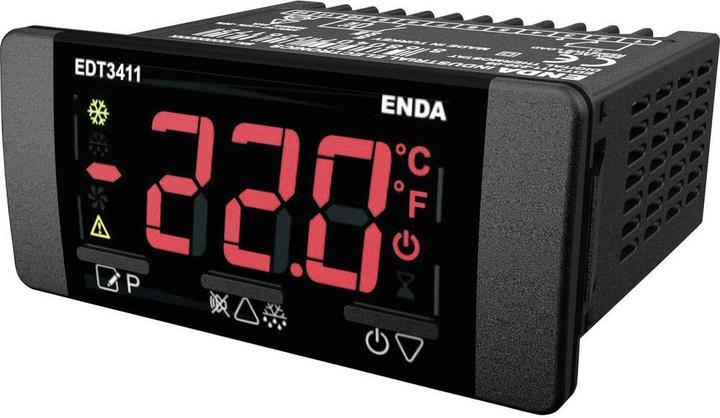

6. Enda EDT3411-230-08 Temperature controller NTC -60 to +150°C relay 8A (W x H) 77mm x 35mm
Enda EDT3411 cold store controller with defrost function. Features include an input NTC sensor, offset (measurement value correction) for the NTC sensor, and output for heating/cooling processes. The defrosting duration and interval time can be set, along with delay and minimum run time settings for the compressor. It has a digital input for compressor or door alarm control, high/low limit values, and delay time for alarms. The periodic switching behavior of the relay can be set in case of sensor breakage. There are lower and upper limits for the setpoint setting range, and the unit can be adjusted to °C or °F. RS485 Modbus RTU communication is optional, as is the parameter transfer function via ENDAKEY-RF.
Specifications:
- Manufacturer part #: EDT3411-230-08
- Max. temperature reading: +150 °C
- Operating voltage: 230 V AC
- Outputs (thermostats): 8 A relay
- Product size (height): 35 mm
- Product size (width): 77 mm
- Product type: Temperature controller
- Recess depth: 61 mm
- Sensor type: NTC
- Temperature reading (min.): -60 °C
- Temperature reading range: -60 up to +150 °C
- Type (manufacturer type): EDT3411-230-08.
Thermostats
EUR114,32
Enda EDT3411-230-08 Temperature controller NTC -60 to +150°C relay 8A (W x H) 77mm x 35mm

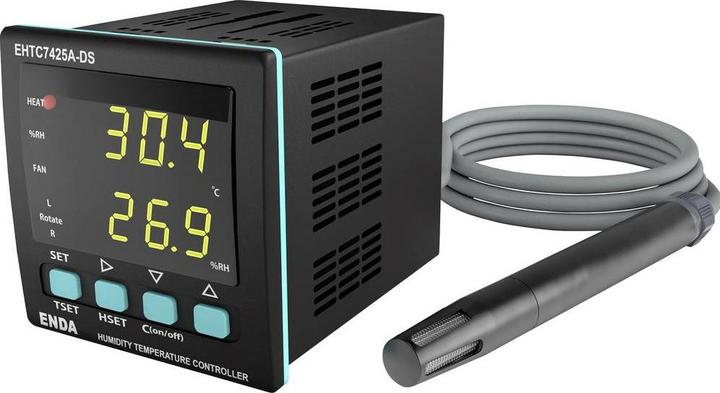

7. Enda Ehtc7425a Humidity And Temperature Controller
The Enda EHTC7425A humidity and temperature controller is a versatile device designed for precise control of temperature and humidity conditions in industrial applications. With a temperature range of 0 to +50 °C and a relay capacity of 10 A, this universal controller provides a reliable solution for various automation needs. Its compact design, measuring 72 mm x 72 mm, allows for easy integration into existing systems. The controller is designed for mains operation and is ideal for applications in industrial automation where accurate monitoring and regulation of environmental conditions are required. The robust construction and user-friendly interface make it a practical choice for professionals seeking efficiency and precision in their processes.
- Temperature range of 0 to +50 °C
- Relay capacity of 10 A
- Compact dimensions of 72 mm x 72 mm.

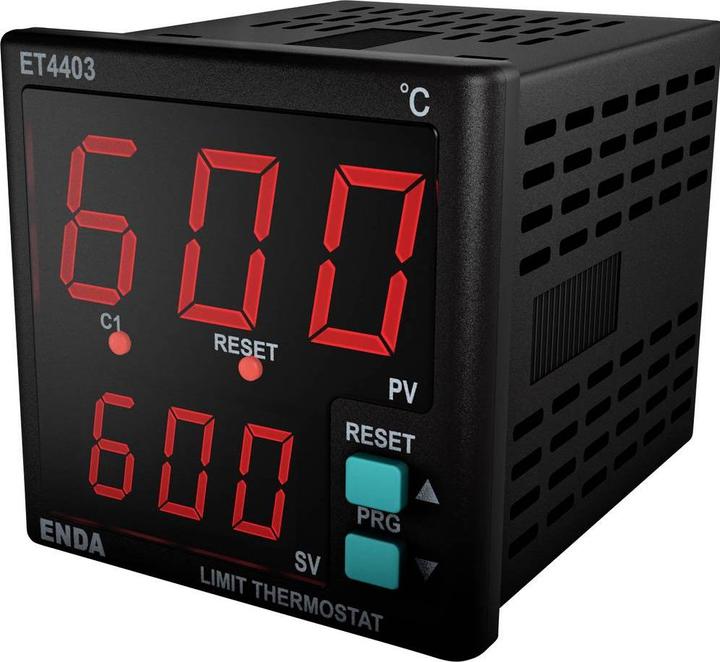

8. Enda ET4403-230 Temperature monitor +1 to +50°C (W x H) 48mm x 48mm
Enda ET4403 temperature monitor with reset input. Features a 14.2 mm / 9.1 mm 7-segment LED display, 2-conductor PT100 input, and the function can be set to ON-OFF control or temperature monitor. It allows setting the dark switching of the display and includes a C1 output relay, offset setting for measurement value correction, an external reset input, and a front reset button. The output switches off in case of sensor failure.
Specifications:
- Manufacturer part #: ET4403-230
- Max. temperature reading: +50 °C
- Operating voltage: 230 V
- Product size (height): 48 mm
- Product size (width): 48 mm
- Product type: Temperature sensor
- Recess depth: 65.70 mm
- Temperature reading (min.): +1 °C
- Temperature reading range: +1 up to +50 °C
- Type (manufacturer type): ET4403-230.
9. Enda EDP2041-SM Digital potentiometer (W x H) 77mm x 35mm
Enda EDP2041 digital potentiometer. Features: Dimensions 35 x 77 mm, 4-digit display, simple setting via front-side buttons, RS-485 interface for synchronous operation of several potentiometers (optional), external control for additional keys. Display (scale) adjustable between -1999 and 9999, decimal point between 1 and 3, decade adjustable. Setpoints can be assigned for output signals 0-10V, 0-20mA, and 4-20mA. Adjustable rise/fall delay (soft on and soft off) of the output signal. Parameter protection against unauthorized adjustment. Specifications: Manufacturer part #: EDP2041-SM, operating voltage: 230 V AC, product size (height): 35 mm, product size (width): 77 mm, product type: digital voltage divider, recess depth: 71 mm, type (manufacturer type): EDP2041-SM.

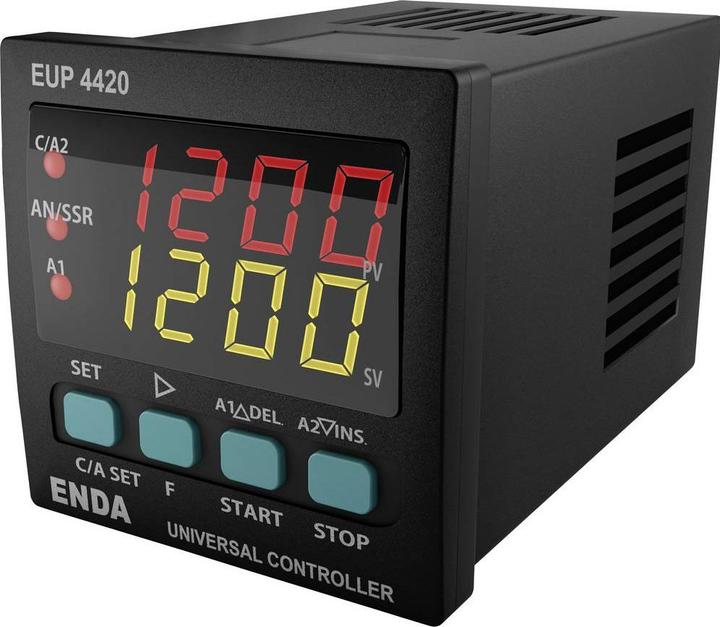

10. Enda EUP4420-230 PID universal controller Pt100, J, K, L, T, S, R SSR, relay 8A (W x H) 48mm x 48mm
Universal 3-point PID controller, 48x48mm. Features include the ability to set two target values and configure the analogue output for 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, or 0-50mV. It has measuring inputs for thermocouples, PT100, J, K, L, T, S, R, mA, mV, and V. The controller automatically calculates PID parameters (SELFTUNE) and can function as three-point control or engine valve control. Three different functions can be assigned to the digital input and the F key. It features a soft start with a time specification for the setpoint. The control output is selectable as relay, analogue, or SSR output. The analogue output can be set as 0-20mA, 4-20mA, or as SSR output. It includes a ramp function with up to 16 steps. The A1 relay output can be configured as an alarm or PID relay output for cooling, while the C/A2 relay output can be set as an alarm or control output for heating. An offset setting for the input variable is available, and the heating or cooling function can be configured. The periodic switching behavior of the relay can be set in case of sensor breakage. Programming can be done via buttons or Modbus protocol.
Specifications:
- Manufacturer part #: EUP4420-230
- Mounting type: Recess-mount
- Number of digital inputs: 1
- Number of relay outputs: 2
- Operating voltage: 230 V AC
- Outputs (thermostats): SSR, 8 A relay
- Product size (height): 48 mm
- Product size (width): 48 mm
- Product type: Universal controller
- Recess depth: 87 mm
- Sensor type: Pt100, J, K, L, T, S, R
- Thermostat type: PID
- Type (manufacturer type): EUP4420-230.
Thermostats
EUR179,–
Enda EUP4420-230 PID universal controller Pt100, J, K, L, T, S, R SSR, relay 8A (W x H) 48mm x 48mm
