This shrink tubing set from Delock is used for the protection and insulation of cables, electrical lines, or wires. When exposed to heat, the tubing completely encloses the cable and shrinks. This protects the cable from weather influences and mechanical damage. The adhesive on the inner wall bonds the shrink tubing to the wire or cable being shrunk.

Selection of different sizes and shrink ratios
This set includes tubes with six different diameters and two different shrink ratios, making them versatile for various applications.

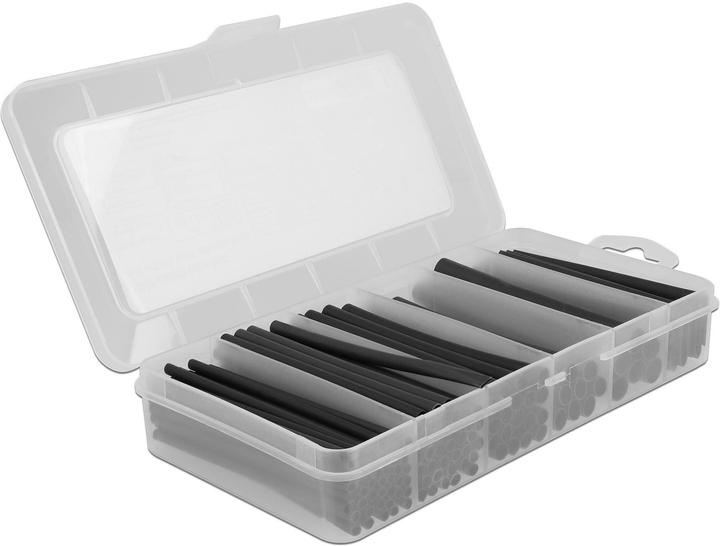

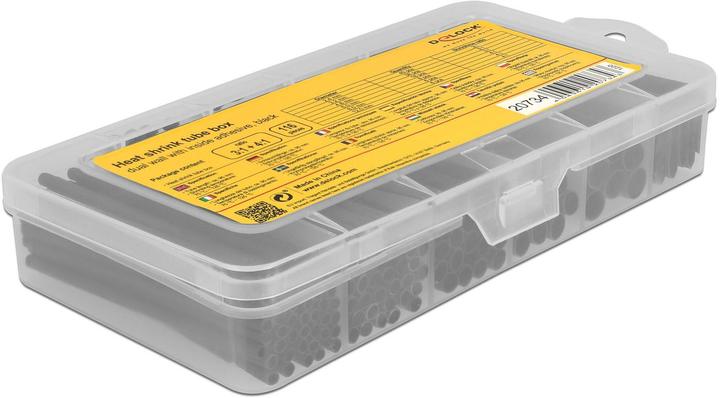

Practical storage box
The handy box is ideal for protecting the shrink tubes, keeping them free from dirt and dust. The box can also be reused for storing various tool accessories, such as screws, nuts, etc.

Versatile applications
The shrink tubes can be used in a workshop, at home, or in industry.

Application of shrink tubes
The shrink tubing can be heated with a hot air gun, shrinking the tube to one-third of its original diameter at a shrink ratio of 3:1 and to one-quarter at a shrink ratio of 4:1.

Specifications

• Contents:

Shrink ratio 3:1:
40 x diameter 2.4 mm
38 x diameter 3.2 mm
18 x diameter 4.8 mm
Shrink ratio 4:1:
8 x diameter 6.0 mm
6 x diameter 8.0 mm
6 x diameter 12.0 mm

• Tube length: approx. 95 mm
• Shrink temperature: 70 °C ~ 125 °C
• Color: black
• Material: Polyolefin
• Dimensions of assortment box (LxWxH): approx. 205 x 115 x 40 mm

Package contents

• Shrink tubing box.
