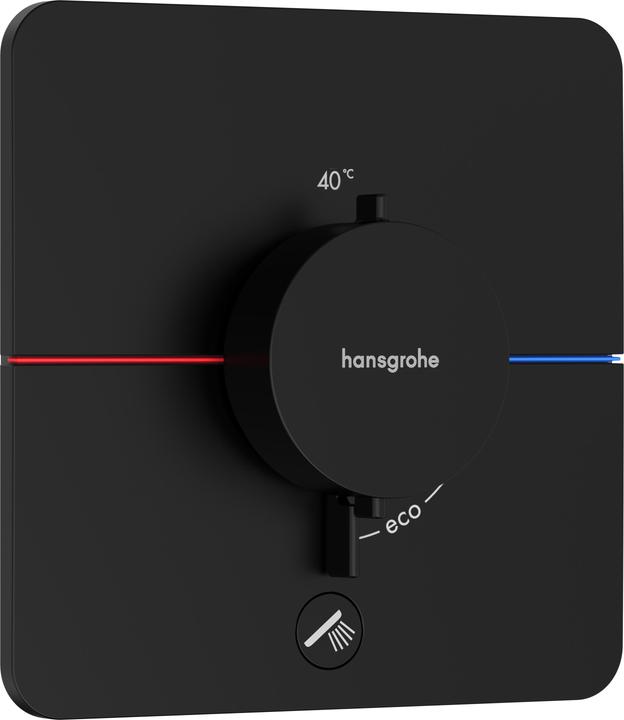

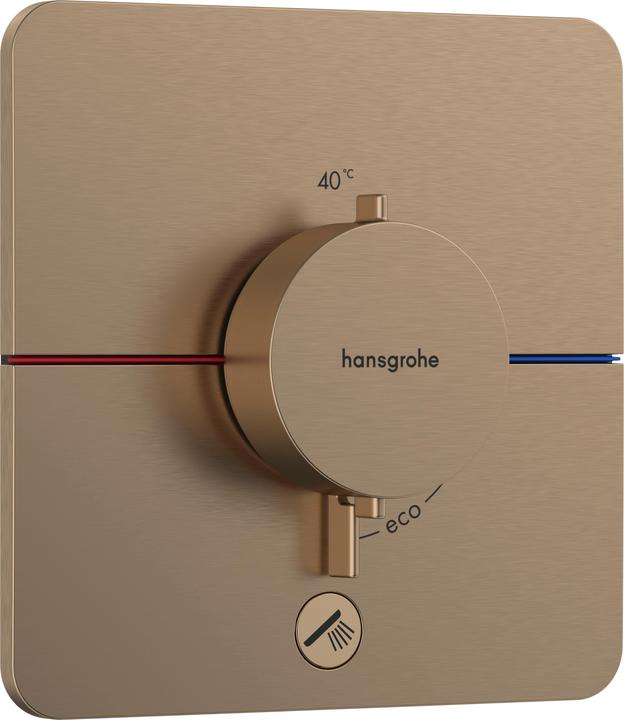

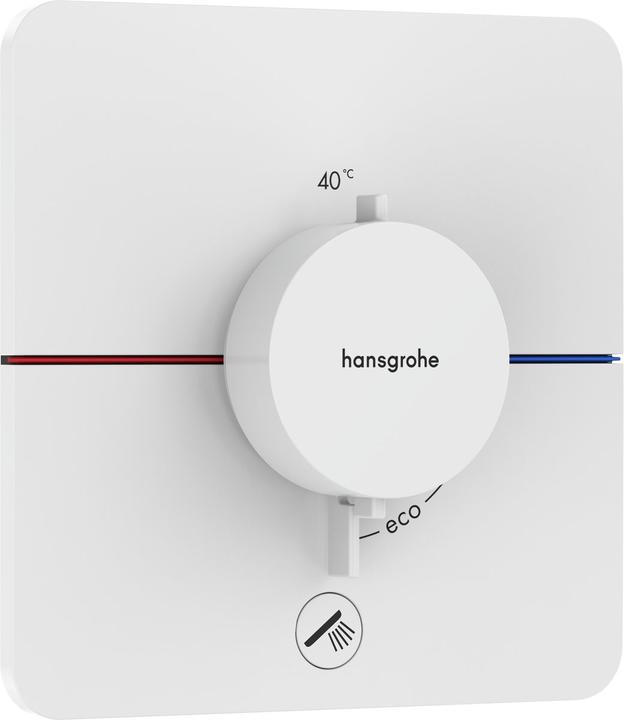

Hansgrohe ShowerSelect Comfort Q 1 x Concealed Thermostat

Product details:

• For one consumer and an additional outlet
• Large Select button for comfortable on/off control of a consumer
• Flow control with stop function
• Thermostat cartridge, start/stop valve for operating the consumers
• Flat rosette for more space in the shower
• Soft Edge rosette adjustable by +/- 3° after installation
• Pre-assembled functional block for easy installation
• Handle always at the same height, regardless of the installation depth of the main body
• Temperature limitation adjustable
• Safety lock at 40 °C
• Thermostat offers the possibility of thermal disinfection
• Material (handles/button): Metal

Technical specifications:

• Connection type: Main body iBox universal 2
• Main body not included, please order separately
• Max. flow rate at 3 bar: 32.8 l/min
• Flow rate upper outlet: 23 l/min
• Flow rate lower outlet: 23 l/min
• Min. operating pressure: 1 bar
• Max. operating pressure: 10 bar
• Noise group: I
• Flow class: B

Scope of delivery:

• Thermostat
• Functional block
• Mounting materials and installation instructions.
