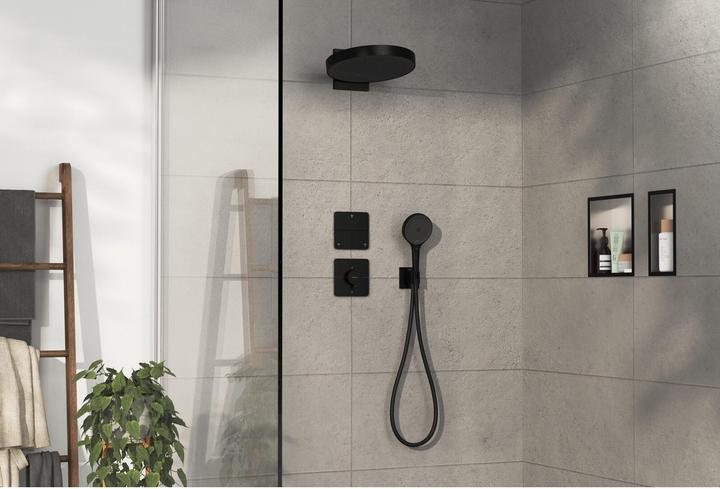

Hansgrohe ShowerSelect Comfort Q 1 x Concealed Thermostat

Product details:

• For one consumer and an additional outlet
• Large Select button for comfortable on/off control of a consumer
• Flow control with stop function
• Thermostat cartridge, start/stop valve for operating the consumers
• Flat rosette for more space in the shower
• Soft Edge rosette adjustable by +/- 3° after installation
• Pre-assembled function block for easy installation
• Handle always at the same height regardless of the installation depth of the main body
• Adjustable temperature limitation
• Safety lock at 40 °C
• Thermostat provides the option for thermal disinfection

Material (Handles / Button): Metal

Thermostat is supplied with small and large Rain buttons as well as hand shower, overflow, and bathtub.

Technical specifications:

• Connection type: Universal iBox main body 2 (Art. No.: 01500180)
• Main body not included, please order separately.
• Max. flow rate at 3 bar: 32.8 l/min
• Flow rate upper outlet: 23 l/min
• Flow rate lower outlet: 23 l/min
• Min. operating pressure: 1 bar
• Max. operating pressure: 10 bar
• Noise group: I
• Flow class: B

Scope of delivery: Thermostat, function block, mounting materials, and installation instructions.
