Hensel Cable Junction Box KF 0604 B

Manufacturer: Hensel
Designation: Cable junction box 1.5-4 5-pole black
Type: KF 0604 B
Max. conductor cross-section: 6 mm²
Configuration: Screw terminal
Shape: Square
Mounting type: Wall/Ceiling mounting
For pipe diameter: Other
Rear entry: Yes
Length: 130 mm
Width: 130 mm
Depth: 77 mm
Stackable: No
Number of entries: 8
Type of housing entry: Pre-formed
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Color: Black
Protection class (IP): IP66/IP67/IP69
Cover design: Other
Cover fastening: Screwed
Pourable: No
With casting compound supplied: No
Seal-able: Yes
Rated insulation voltage Ui: 690 V
Function maintenance: None
With shielding: No
Weather-resistant: Yes
Operating temperature: -25..70 °C
Explosion-tested version: No
For Ex-zone gas: None
For Ex-zone dust: None

Hensel Cable Junction Box KF 0604 B: Additional Details

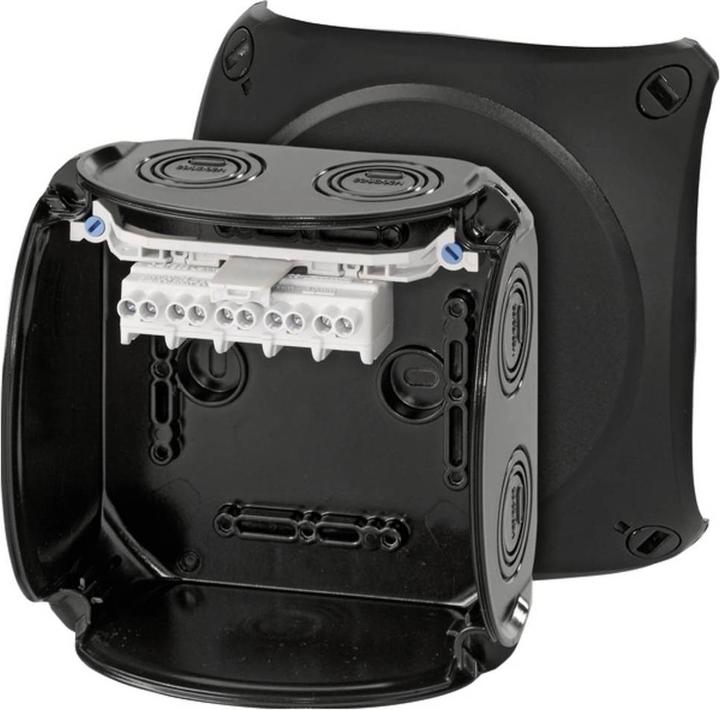

Cable junction box made of high-quality thermoplastic for unprotected outdoor installation or surface-mounted applications in buildings. Resistant to weather influences such as UV exposure from sunlight, protected against rainwater, temperature-resistant, and impact-resistant. Cover fastening via quick closures. With external tabs for mounting. Sea water resistant, suitable for offshore applications. Approved for installation on ships. Terminal with 2 connection points per pole up to 4 mm², 5-pole. Cable entry via metric pre-forms. Mounting cable bushings available as accessories. With cover retaining strap.
