Knipex Crimping pliers
184 mmLength
Product details

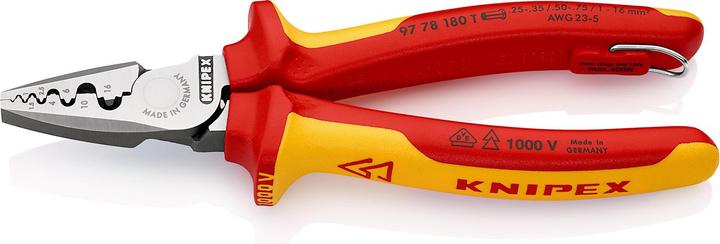

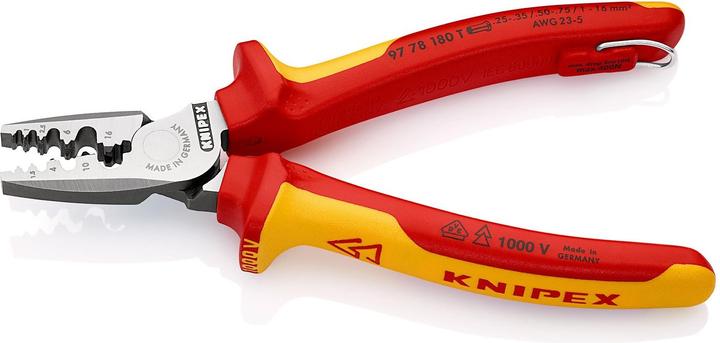

Knipex-Werk crimping pliers 97 78 180 T BK
Manufacturer: Knipex-Werk
Designation: Crimping pliers
Type: 97 78 180 T BK
Suitable for: Various applications
Crimping shape: Mandrel crimping
Cross-section: 0.25 to 16 mm²
With locking device (for mechanical tools): No
Inserts replaceable: Yes
Number of inserts supplied: 1
Knipex-Werk crimping pliers 97 78 180 T BK are designed for wire end ferrules with a light and slim design. They are also available in a VDE version. The pliers feature easy crimping due to an optimized transmission ratio and are suitable for crimping wire-end ferrules according to DIN 46228 part 1 and 4 in the range from 0.25 to 16 mm². Crimping is done in marked half-round profiles for a secure connection of the sleeve and conductor. The pliers have nine extra deep profiles with conical side surfaces and an integrated insulated fastening eye for attaching fall protection.
- Application: Ferrules
- Capacity square millimetres: 0.25 to 16.0 mm²
- Number of nests: 9
- AWG: 24 to 6.
Material group | Metal |
pliers type | Crimping pliers |
Length | 184 mm |
application purpose | Crimping |
Weight | 250 g |
Handle design | Multi-component cover |
Item number | 35045467 |
Manufacturer | Knipex |
Category | Pliers |
Manufacturer no. | 97 78 180 T BK |
Release date | 17-5-2023 |
Material group | Metal |
Material | Insulated with multi-component sleeves, VDE-tested; with integrated insulated fastening eyelet for attaching a fall protection device |
surface finish | Burnished |
pliers type | Crimping pliers |
application purpose | Crimping |
Handle design | Multi-component cover |
EN standard | VDE-tested |
DIN standard | DIN 46228 Part 1+4 |
Top shape | Mandrel crimp |
Crushing range | 0.25-16mm² |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 184 mm |
Width | 53 mm |
Height | 28 mm |
Weight | 250 g |
Product Safety |
