Voltcraft Hochflexible security blade

1.50 m
Price in EUR including VAT, plus shipping
EUR9,94/1m
Ratings
BrandMore from Voltcraft
Delivered between Fri, 20-6 and Sat, 21-6
More than 10 items in stock at supplier

Product details

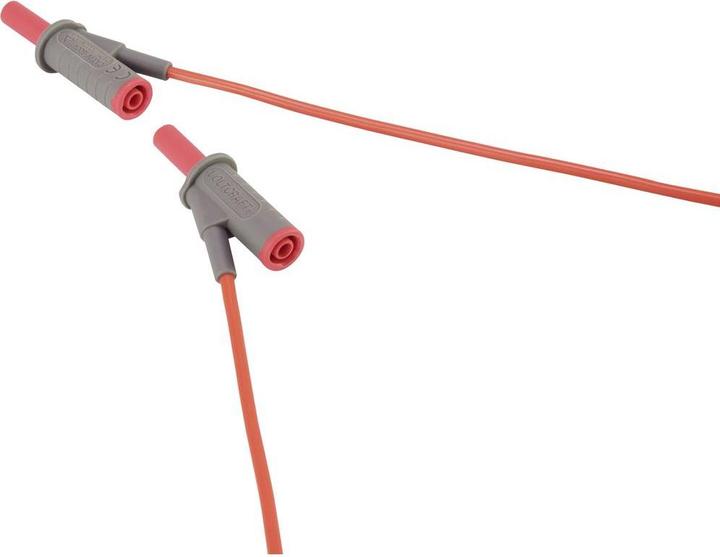

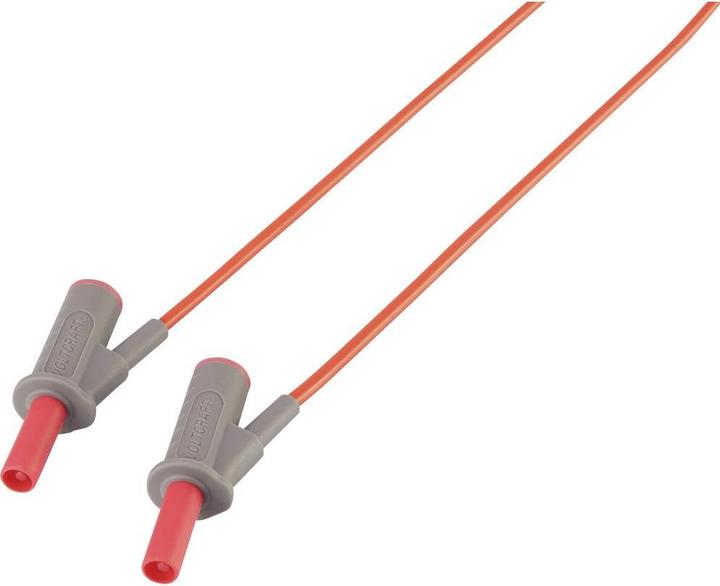

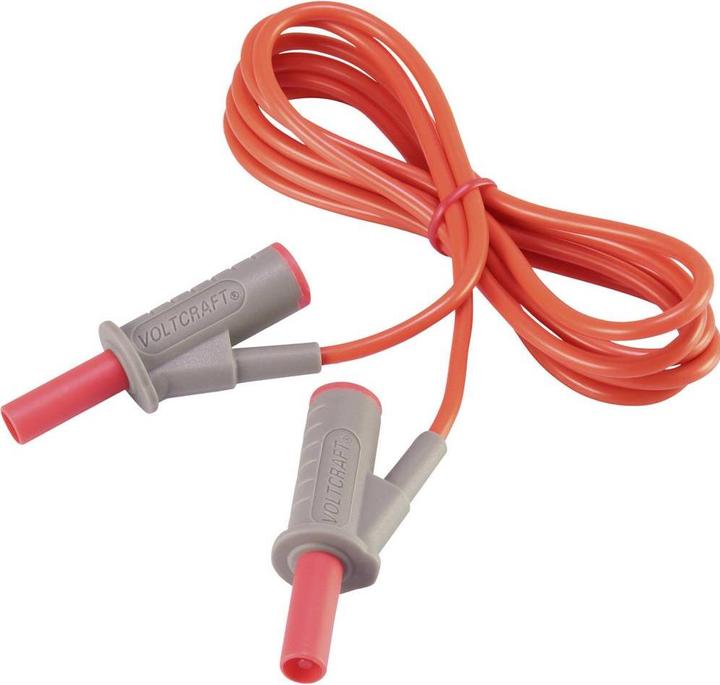

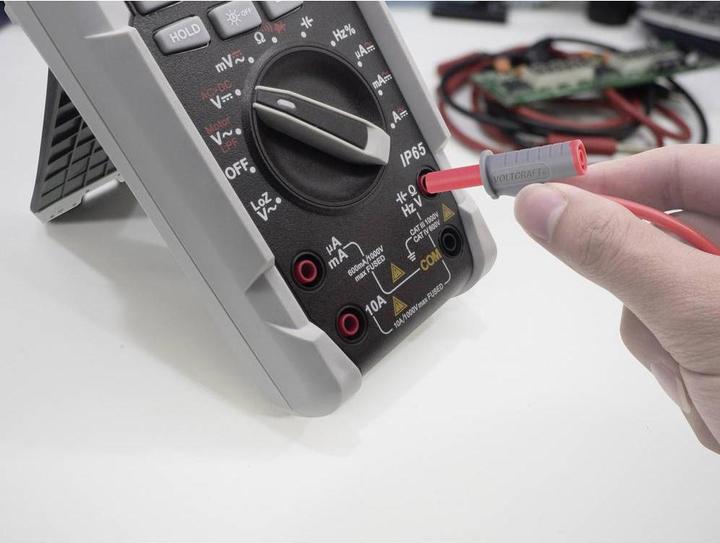

The VOLTCRAFT safety measuring lead MSB-501 is optimized for electrical connections and measurements in laboratories and crafts. The rated current is 10 A, and the rated voltage is 1000 V AC (alternating current) and 1000 V DC (direct current). According to CAT IV, the rated voltage is 600 V AC and 1000 V DC.

Extremely flexible
The cable material used is of exceptionally flexible quality. Unlike cheaper and stiffer materials, the VOLTCRAFT MSB-501 makes "cable spaghetti" nearly impossible.

Increased tensile strength
Particularly tear-resistant plastic fibers enhance tensile strength and extend the lifespan.

Heat resistant
The measuring lead is insulated with silicone and is resistant to heat damage that can occur when working with hot soldering irons.

For your safety
The measuring lead is double insulated in two colors. If the first insulation layer is damaged, a white insulation layer is revealed. This wear indicator reliably shows when the cable is worn out. For safety reasons, damaged measuring leads should be replaced immediately.

Secure contact
The hard-nickel surface coating of the 4 mm safety lamella connectors allows for a high number of plug cycles.

Key specifications

Cable cross section
0.85 mm²
Voltage
1000 V
Cable length
1.50 m
Exact colour description
Red
Item number
9352969

General information

Manufacturer
Voltcraft
Category
Cable conductors
Manufacturer no.
VC-8063395
Release date
7-8-2018
External links
Manufacturer's site (de)

Colour

Colour
Red
Exact colour description
Red

Material

Material group
Plastic
Material
Silicone

Cable properties

Cable cross section
0.85 mm²
Nominal voltage U
1000 V
Nominal voltage U0
600 V
Nominal current
10 A
measurement category
CAT III 1000V, CAT IV 600V
Contact material
Nickel-plated brass
Cable Application
Installation
Plug type
Nickel-plated contacts

Power supply

Voltage
1000 V

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Cable length
1.50 m
Outside diameter
4 mm
