Best somfy products in the Electric motors category
On this page you'll find a ranking of the best somfy products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

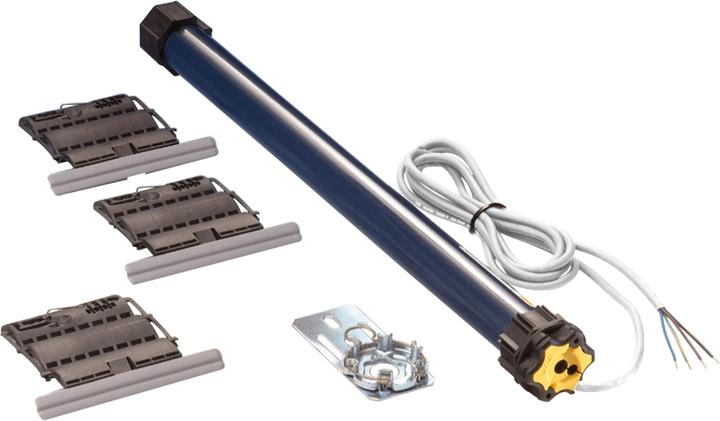

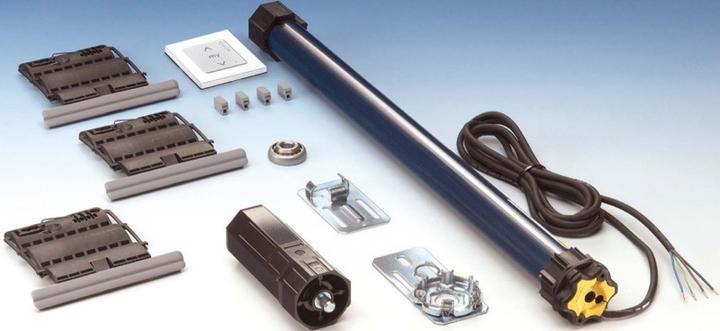

1. somfy Roller shutter automation set
Complete kit with Somfy roller shutter motor. For roller shutters with a maximum area of 5 m² and a roller shutter shaft SW60 (60 mm key width, octagonal). Includes electrical and mechanical components for installation, a break-in resistant shaft connector (between the roller shutter and the shaft), and a wall switch for operating the roller shutter.
2. somfy GDK 700 RTS
Garage door complete set GDK 700 RTS. Open and close the garage door in the future with the included remote control. Somfy GDK 700 also offers burglary protection. When operating the garage door, the integrated light bulb automatically turns on. Suitable for swing and sectional doors with a door height of 2.5 m and an area of 7 m².
3. somfy Roller shutter motor 4sqm 8Nm/17Umin. 1035192
Somfy Roller Shutter Motor 1035192
Manufacturer: Somfy
Description: Roller shutter motor for 4 sqm, 8 Nm/17 RPM
Type: 1035192
Outer diameter: 45 mm
Torque: 8 Nm
Square steel shaft SW 40: no
Square steel shaft SW 50: yes
Square steel shaft SW 60: yes
Square steel shaft SW 70: yes
For roller shutters: yes
For awnings: yes
For profile tube shaft: yes
Max. roller shutter weight: 20 kg
Type of limit switches: mechanical
Backjump: no
Electronic travel monitoring: no
Electronic obstacle detection: no
With coupling: yes
With adapter for shaft: yes
Length: 525 mm
Additional details: Roller shutter motor for 4 sqm, with adapter, coupling, motor mount, and 2.5 m cable, black, 8 Nm torque, for shaft SW 60.
Have you heard about the Somfy modernization kit Radio io? Your benefits: significant time savings due to reduced wiring effort during installation and quick commissioning, even for retrofits. Additionally, Somfy radio drives can be easily and quickly integrated into the smart home control system TaHoma.
EAN: 3660849562755.
4. somfy Funkantrieb

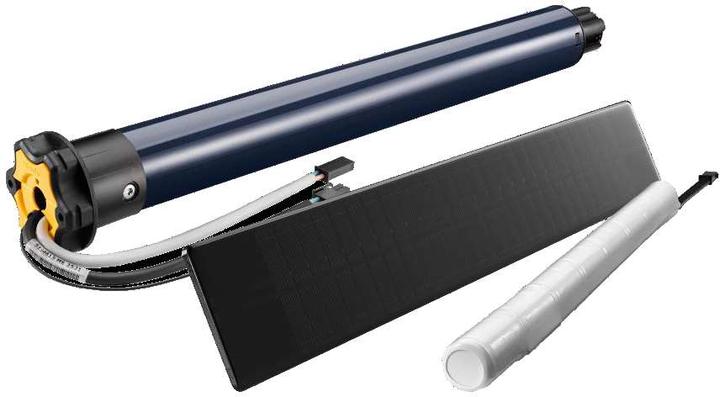

The drive is supplied in a kit consisting of a powerful DC drive with integrated radio receiver, a compact NiMH rechargeable battery and a modern mSi (monocrystalline silicon) solar panel. The components are designed to ensure reliable operation all year round (min. 2 cycles per day). It is conveniently operated using a Somfy io transmitter. The solar kit is the perfect solution for motorising roller shutters when no power supply is available. With permanently installed cable. Clean and uncomplicated installation without laying cables. Electronic end positions (fixed or automatic). Quiet and energy-saving operation. Reliable operation all year round, even in cloudy, extremely cold and north-facing conditions. Discreet and elegant solar panel with small size and high output. Obstacle detection and freeze protection Notes: The same bearings, adapters and drivers can be used as for the LS 40 series drives. The adaptation kit (item no.: 9 013 763) plus suitable adapters/ drivers must be used for installation in SW 50/60 shafts. Every specialised company requires a charger (item no.: 9 015 006) for initial charging of the battery modules. Product is not compatible with older Smoove Origin io (manufactured before 2020), all Smoove io (sensitive), Composio io, Impresario io, Easy Sun io. The Sunis WireFree II io sun sensor can only be used via Tahoma / Nina io. Replacement costs are not included. Scope of delivery: Drive with adapter/tappet for SW 40 x 0.6 and plastic bearing incl. solar panel and battery module. Nm: 3 RPM: 23 L 1 in mm. 460 Power in W: 17. Operating voltage: 12 V - 50 Hz. Operating temperature: -20 to 70 degrees C. Protection class: IP 44 Protection class: II. Radio frequency: 868-870 MHz Smart Home Ready by Somfy: great time savings thanks to less wiring work during installation and fast commissioning, even for retrofitting.
5. somfy Modernization kit 9/14 EGH 1023027

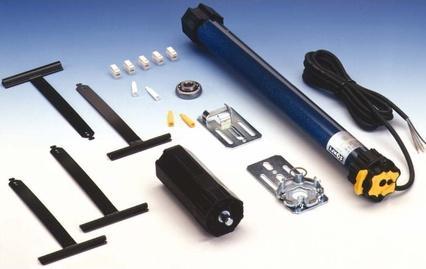

The Somfy complete package represents an all-in-one solution for various roller shutter installation situations and is characterized by user-friendliness and efficiency. The operation of the drive is carried out via the included wired Smoove UNO wall switches, eliminating the need for complex installation work. The system is designed for maximum comfort and durability, achieved among other things by a fixed end position setting and a smooth, quiet operation due to high-quality bearings. The package includes a powerful plug-in drive and matching components such as adapters, a drive for the 8-sided shaft, a robust motor bracket, and a telescopic roller capsule that allows for easy adjustment to the roller shutter shaft. Mounting springs, quick connection terminals including a 3-meter cable, and a Smoove UNO wall switch with a frame further facilitate installation. The drive is suitable for plastic roller shutters with an area of up to 5 m² and aluminum roller shutters with an area of up to 3.5 m², offering a rated torque of 9 Nm and a rated speed of 16 rpm at a nominal voltage of 230 V. With a power consumption of 110 W, a frequency of 50 Hz, and a diameter of 40 mm, the system strikes a balance between performance and energy efficiency. For those looking for a more flexible option, the io modernization kit is available. This minimizes wiring effort and allows for quick initialization, making it ideal for retrofitting. Thanks to the possibility of integration into Somfy's TaHoma home control system, the wireless drive can be incorporated into a wide range of other smart devices, enabling comprehensive home automation.
6. somfy Roller shutter motor 7,5sqm 15Nm/17Umin. 1039499
Somfy Roller Shutter Motor 1039499
Manufacturer: Somfy
Description: Roller shutter motor for 7.5 sqm, 15 Nm/17 RPM
Type: 1039499
Outer diameter: 45 mm
Torque: 15 Nm
Hexagonal steel shaft SW 40: no
Hexagonal steel shaft SW 50: yes
Hexagonal steel shaft SW 60: yes
Hexagonal steel shaft SW 70: yes
For roller shutters: yes
For awnings: yes
For groove tube shaft: yes
Max. roller shutter weight: 37 kg
Type of limit switches: mechanical
Backjump: no
Electronic travel monitoring: no
Electronic obstacle detection: no
With coupling: yes
With adapter for shaft: yes
Length: 545 mm
Somfy Roller Shutter Motor 1039499: additional details
Standard roller shutter motor for 7.5 sqm, 15 Nm torque, with adapter, coupling, motor mount, and 2.5 m cable, black, for shaft SW 60. With mechanical limit setting via push button.
Have you heard about the Somfy modernization kit for Radio io? Your benefits: significant time savings due to reduced wiring effort during installation and quick commissioning, even for retrofits. Additionally, Somfy radio drives can be easily and quickly integrated into the smart home control system TaHoma.
EAN: 3660849562748.

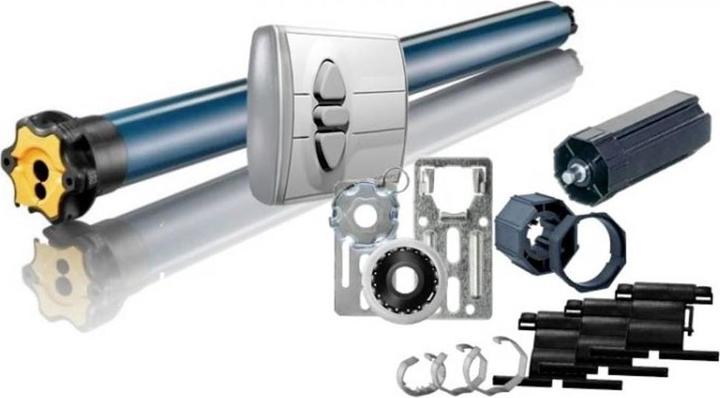

7. somfy Modernisation kit
Somfy Modernization Kit 1038131
Manufacturer: Somfy
Designation: Modernization Kit Radio io 10/17
Type: 1038131
Outer Diameter: 45 mm
Torque: 10 Nm
Square Steel Shaft SW 40: no
Square Steel Shaft SW 50: no
Square Steel Shaft SW 60: yes
Square Steel Shaft SW 70: yes
For Roller Shutters: yes
For Awnings: no
For Profile Tube Shaft: yes
Diameter of Profile Tube Shaft: 50 mm
Max. Roller Shutter Weight: 24 kg
Type of Limit Switches: electronic
Backjump: no
Electronic Travel Monitoring: no
Electronic Obstacle Detection: yes
With Coupling: yes
With Adapter for Shaft: yes
Length: 498 mm
Somfy Modernization Kit 1038131: additional details
The drive is controlled via radio control (included in delivery).
- Can be connected in parallel
- With obstacle detection and freeze protection
- Fixed/automatic end positions
- Somfy Drive Control
- Adjustable intermediate position
- Soft start and stop
- Two speeds
Package Contents:
- Radio Plug-in Drive
- Smoove 1 io Pure Radio Wall Transmitter
- Adapter and coupling for precise fitting of the drive in the square shaft
- Motor Bearing
- Counter/Ball Bearing for particularly safe, low-friction, and quiet operation
- Telescopic Roller Capsule
- Length adjustments of the roller shutter shaft can be easily and quickly made by removing the belt/gear drive
- Mounting Springs for easy, precise attachment of the roller shutter fabric to the square shaft
- Quick Connection Terminals
- 3 m black cable
Application Area Plastic: 4 sqm
Application Area Aluminum: 2.5 sqm
Use in Square Shaft: ø 60
Rated Torque: 10 Nm
Rated Speed: 17 rpm
Rated Voltage: 230 V
Frequency: 50 Hz
Rated Power Consumption: 55 W
EAN: 3660849563080.
8. somfy 1038132 Modernisation kit radio io 9/17
9. somfy Universal drive 1037848
Electronic universal drive for roller shutters up to 7.5 sqm. Delivery includes: motor bracket, adapter/connector for installation on 60 mm octagonal shaft, 3 rigid shaft connectors, 4-wire drive cable 2.5 m in white, installation instructions. Have you heard about the Somfy modernization kit with io technology? Your advantages: significant time savings due to reduced wiring effort during installation and quick commissioning, even for retrofits. Additionally, Somfy radio drives can be easily and quickly integrated into the smart home control system TaHoma, which is compatible with numerous manufacturers in the market.
10. somfy 1245893

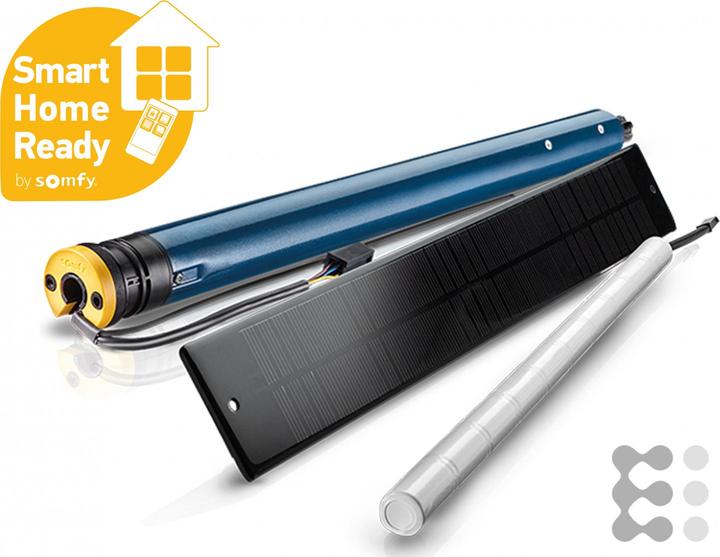

The Somfy RS100 io Solar Kit is an innovative solution for motorizing roller shutters, particularly suitable for applications without a power connection. This system harnesses the power of the sun to operate a powerful DC drive equipped with an integrated radio receiver. The kit includes a solar panel, a battery, and allows for autonomous use, making it environmentally friendly and efficient. In combination with the TaHoma smart home hub, the solar panel can also function as a sun sensor, further enhancing its functionality. The RS100 io offers reliable performance with at least two cycles per day and is suitable for large roller shutters. Installation is quick and straightforward thanks to plug-and-play technology, while the quiet operating sounds and smooth movements of the drive enhance comfort. Various helpful apps support the commissioning and service, simplifying the use of the system even further.
- Energy supply through solar energy for autonomous use
- Automatic detection of rotation direction and end positions
- Quiet operation with soft start and soft stop functions
- Obstacle detection and freeze detection for increased safety
- High reliability with 45 days of autonomy.
