Best Wieland products in the Power plugs + connectors category

On this page you'll find a ranking of the best Wieland products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

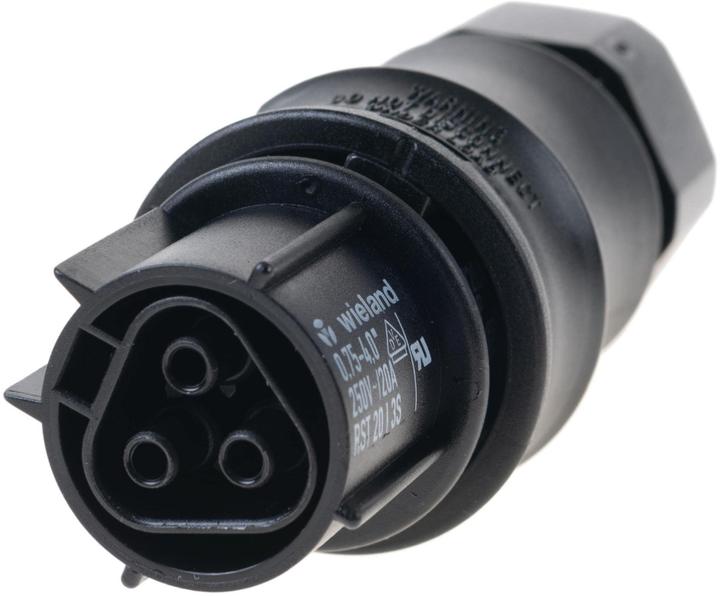

1. Bushing part RST® CLASSIC series

The RST® CLASSIC series connector from Wieland Verlag is a high-quality mounting plug designed for a wide range of applications. With a rated voltage of 250 V and a rated current of 20 A, this 3-pole connector provides a reliable connection for electrical systems. The screw terminals allow for easy and secure installation, while the IP protection classes IP66 and IP68 ensure effective protection against dust and water. The connector is suitable for cable diameters of 6 to 10 mm and is made from robust plastic, enhancing the product's durability and resilience. The self-locking feature and integrated strain relief provide additional safety and stability in use. This product is ideal for use in demanding environments where reliability and safety are of utmost importance.

- 3-pole mounting plug with screw terminals
- Protection classes IP66 and IP68 for high resilience
- Suitable for cable diameters of 6-10 mm
- Rated voltage of 250 V and rated current of 20 A
- Robust plastic material with self-locking function.

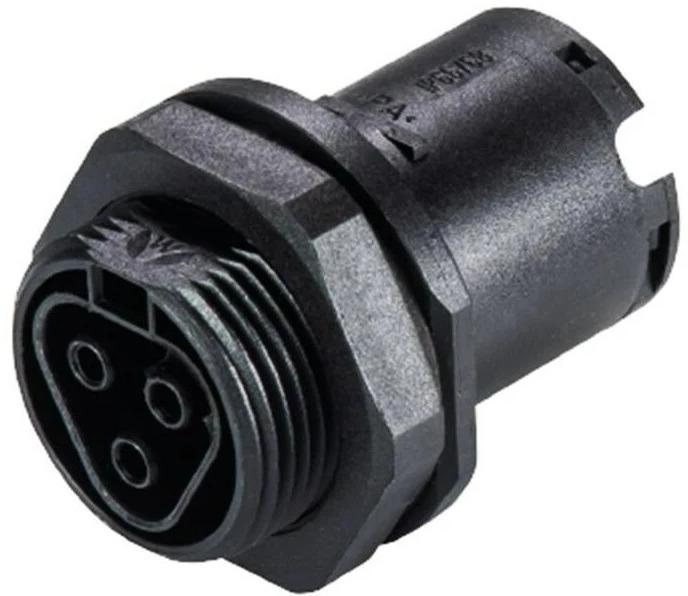

2. Appliance socket 3p ger plug-in/plug-in spring balancer 250V 20A 1.5qmm hfr

The RST20I3F B2 M01 SW device socket from Wieland is a high-quality coupling designed for connecting hose couplings. It provides a reliable connection with a rated current of 20A and a rated voltage of 250V. The socket is self-locking and can be released with tools, allowing for easy handling. It is suitable for both solid and stranded conductor cross-sections, enhancing its versatility. With an IP66/68 and IP69 protection rating, it is optimally protected against the ingress of water and dust, making it ideal for use in demanding environments. The housing is made of robust polyamide, known for its durability. This device socket is a reliable choice for various applications where safety and efficiency are required.

- Self-locking design for easy handling
- Suitable for solid and stranded conductor cross-sections
- Protection rating IP66/68 and IP69 for high resistance
- Made from durable polyamide
- Rated impulse voltage of 4 kV for added safety.

3. Connector part RST® CLASSIC series

The RST20i3 connector from Wieland (96.032.4053.1) is a 3-pole plug component from the RST series with a polyamide housing and CuZn contact. It features strain relief RST20i3S S1 ZR1 SW and a screw connection for solid, fine-stranded, and multi-stranded cables with a cable diameter of 6-10 mm².

- Rated current: 20 A
- Rated voltage: 250 V
- Rated impulse voltage: 4 kV
- Lockable: self-locking (can be released with a tool)
- Coding color: black
- Connection cross-section for solid wires: min. 0.75 mm² - max. 6 mm²
- Connection cross-section for fine-stranded wires: min. 0.75 mm² - max. 6 mm²
- Protection class: IP66/68 (3 m; 2 h) / IP69.

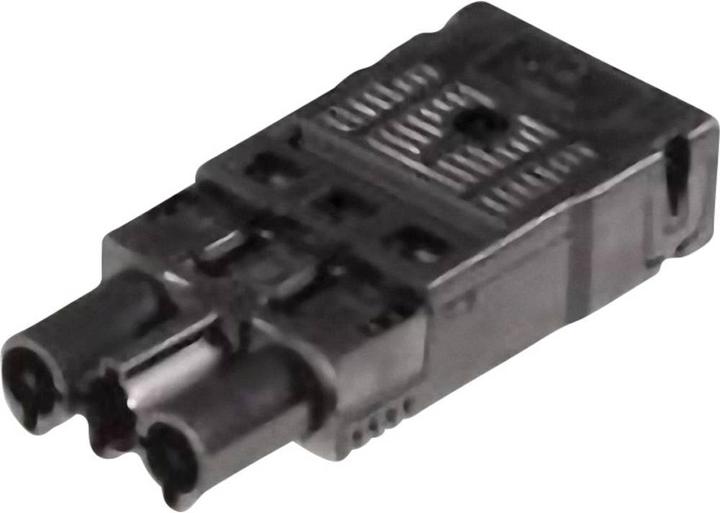

4. Plug part type GST 18i3 S2

Connector with strain relief for self-assembly. 2 connections per pole via spring force. Suitable for connection
of fine-stranded conductors from 1.5 to 2.5 mm² with ferrule, rigid conductors from 1.5 to 2.5 mm². Unassembled with strain relief for conductors
H05VV, NYM with diameter from 7.8 to 10.3 mm. Stripping length: 45 mm, stripping length: 9 mm.

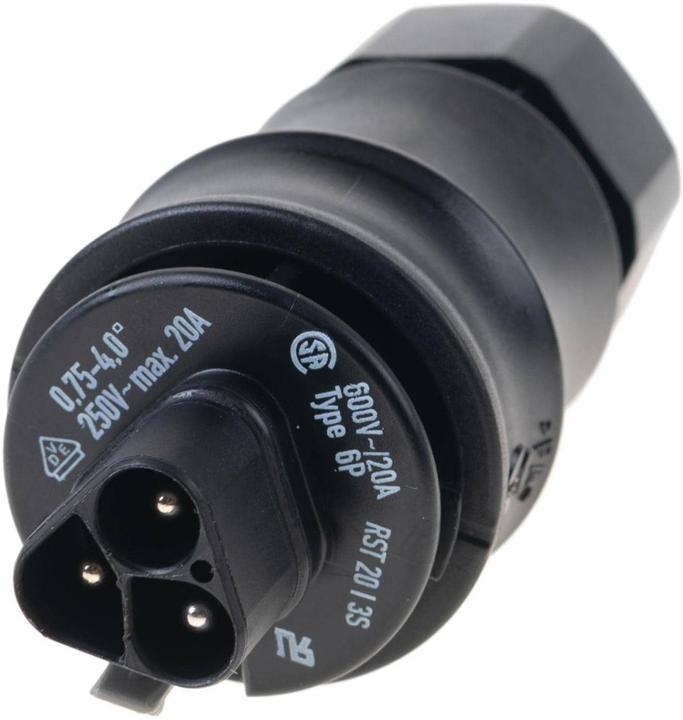

5. Plug part RST® CLASSIC series

The RST® CLASSIC Series plug part from Wieland Verlag is a high-quality male connector designed for a variety of applications in lighting technology. With a rated voltage of 250 V and a rated current of 20 A, this plug provides a reliable connection for electrical devices. The construction features three poles and is made from robust brass, ensuring high conductivity and durability. The silver contact coating enhances corrosion resistance and provides optimal electrical connectivity. The plug is suitable for use in demanding environments, as it meets protection classes IP66, IP68, and IP69, making it resistant to dust and water. This makes it ideal for industrial and commercial applications where reliability and safety are of utmost importance.

- Three poles for versatile applications
- Made from high-quality brass
- Protection classes IP66, IP68, and IP69 for high resilience
- Silver contact coating for improved conductivity and corrosion protection.
