HellermannTyton Connection Kit LVK-C-5x1.5-6PO-XBK

Manufacturer: HellermannTyton
Designation: Connection kit 5x1.5 mm² - 5x6 mm²
Type: LVK-C-5x1.5-6PO-XBK
Rated voltage U0/U (Um): 0.6/1 (1.2) kV
For connecting paper-insulated to plastic-insulated cables: no
Mining approval: no
With concentric shielding: no
Suitable for: other connection accessories
Included: screw connector
Halogen-free: yes

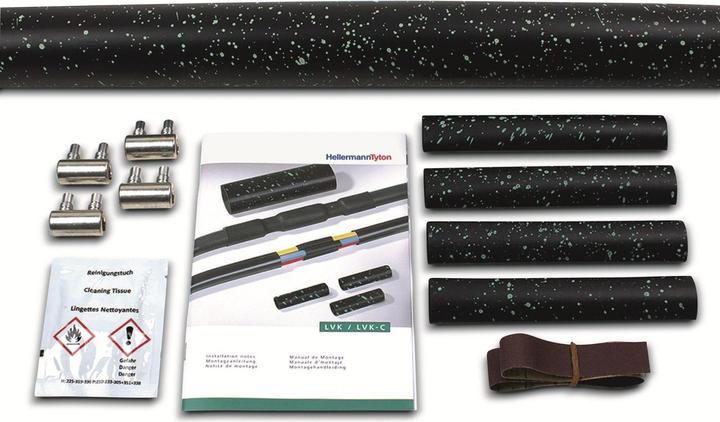

Further details:
Thick-walled with excellent abrasion, bending, and cut protection. 4:1 covers a wide range of applications, high contact pressure. Thermoplastic inner adhesive for protection against external influences and strain relief. Screw connector. Thermochromic points (green dots) as shrink indicators. Resistant to chemicals and alkaline earths. High weather resistance. Halogen-free. Packaged in a set for easy handling.

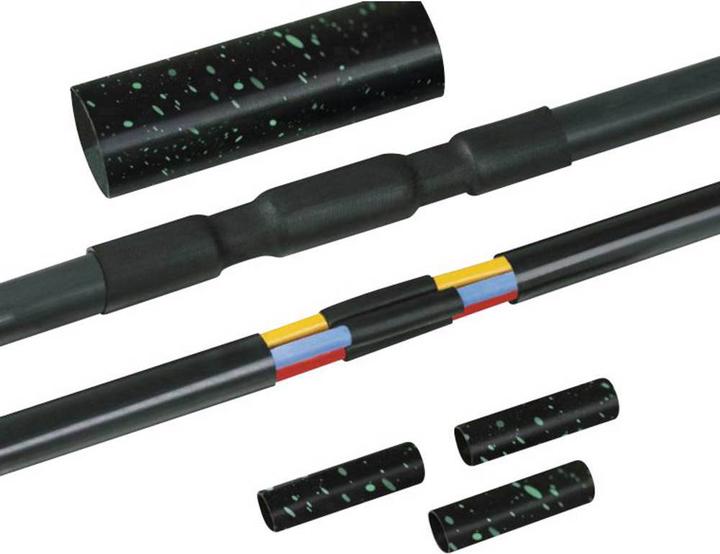

The LVK-C heat-shrink connection kit is designed for the universal connection of unarmored plastic cables and wires made of PVC, PE, and VPE (e.g., N(A)YY, NYM, TT). It is suitable for use with crimp and screw connectors on aluminum and copper cables, rated voltage 0.6/1.0 (1.2) kV.
