HellermannTyton Connection Kit LVK-C-5x6-25 PO-X BK

Manufacturer: HellermannTyton
Description: Connection kit 5x6 mm - 5x25 mm
Type: LVK-C-5x6-25 PO-X BK
Rated voltage U0/U (Um): 0.6/1 (1.2) kV
For connecting paper-insulated to plastic-insulated cables: no
Mining approval: no
With concentric shielding: no
Suitable for: other connection accessories
Included: screw connector
Halogen-free: yes

Further details:

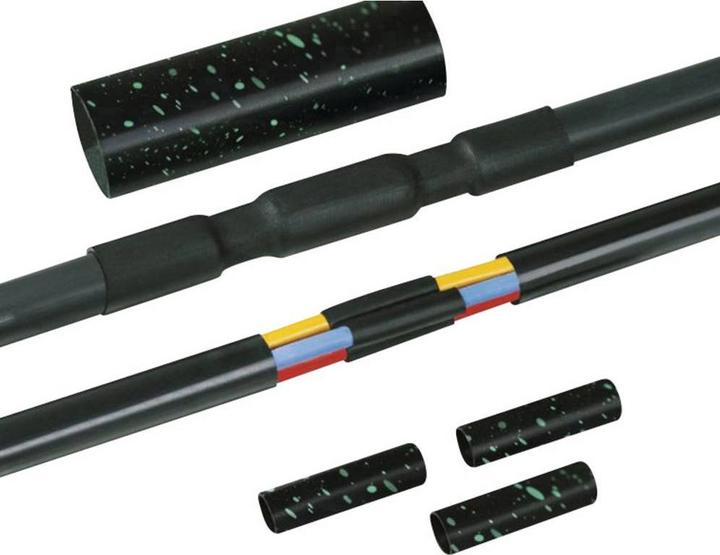

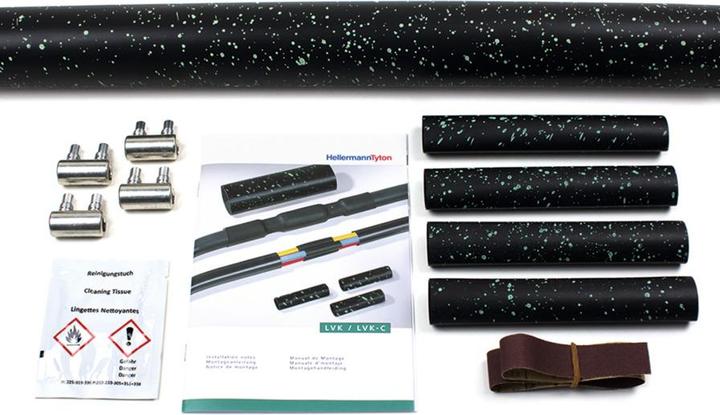

Thick-walled, very good abrasion, bending, and cut protection. 4:1 covers a wide range of applications, high pressing force. Thermoplastic inner adhesive for protection against external influences and strain relief. Screw connector. Thermochromic dots (green dots) as shrink indicators. Resistant to chemicals and alkaline earths. High weather resistance. Halogen-free. Packaged in a set for easy handling. The LVK-C heat-shrink connection kit is designed for the universal connection of unarmored plastic cables and PVC, PE, and VPE wires (e.g., N(A)YY, NYM, TT). It is suitable for use with crimp and screw connectors on aluminum and copper cables, rated voltage 0.6/1.0 (1.2) kV.
